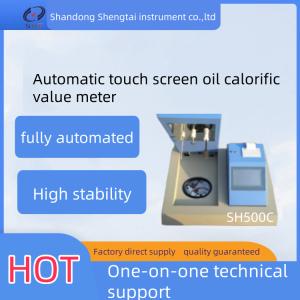

ASTM D240 Auto-Calculating Microcomputer Oxygen Bomb Calorimeter SH500C

  • 1
  • 2

Brand Name : Shengtai Instrument

Model Number : SH500C

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 100000sets/year

Delivery Time : 7-15work-days

Packaging Details : wooden case

Heat capacity : about 10500 J/K

working pressure (oxygen filling) : 2.8 ~ 3.0MPa, the maximum 3.2MPa

Pressure test (water pressure) : 20.0MPa

Quality : 2.5 Kg

Volume : 300 ml

Overall dimension : Φ86mm ×181mm

Repeatability : ± 30J/K

Capacity of external water cylinder : about 45L

Inner water cylinder capacity : about 2100mL

Ignition mode : Fused cotton thread ignition

Temperature resolution : 0.0001℃

Measurement accuracy : in line with the national standard GB/T 213-2008

Machine power : < 300W in ignition state

Use environment : Temperature 0-40℃ Humidity ≤80%

Ignition voltage : AC24V

Voltage : AC220V ± 10% 50Hz

Overall size : 460 ×440× 580mm

Weight : approximately 30 kg

Contact Now

ASTM D240 Auto-Calculating Microcomputer Oxygen Bomb Calorimeter SH500C

SH500C Automatic touch screen oil calorific value meter in accordance with GB/T 213-2008 and GB/T384.It is mainly composed of constant temperature calorimetry system and MCU embedded system. It is a highly automatic heat measurement instrument automatically controlled by the intelligent MCU embedded system and capable of data processing.The instrument is mainly used for the determination of the calorific value of combustible materials such as coal, petroleum, chemical industry, food and wood.

Main features

  • The embedded system is composed of intelligent MCU, which has the advantages of simple structure, reliable performance and strong anti-interference ability.
  • Adopt imported high-precision components to achieve high-precision temperature measurement.With the complete and unique water injection and drainage and calorimetry system of the instrument, the heat capacity of the system can be automatically calibrated, and the calculation program carefully compiled greatly improves the measurement accuracy.
  • Adopt color touch screen display, full Chinese display, good user interface.Automatic control of measurement process.Print the analysis base shell, analysis base high, dry base high, analysis base low, receive low base calorific value, the result is clear and clear.
  • Adoption of unique tracking and correction technology, so that the instrument on the environment requirements are relatively loose, improve the test accuracy, and ensure the stability of long time operation.
  • The inner cylinder adopts electric stirring of sheet paddle;Adopt fuse type cotton thread ignition mode, high reliability, easy operation.
  • The time temperature curve is drawn during the experiment, which is helpful to observe the experiment process.
  • The operation is fully automated, the manual need to do is only weighing, loading and oxygenation, the instrument automatically complete quantitative water injection, automatic mixing, ignition, output printing results, drainage and other work.
  • Single pump replacement injection and drainage, eliminate the original double pump model drainage pump easy to plug the problem, and no need to adjust the water injection time

Main technical indicators

Heat capacity about 10500 J/K

Oxygen bomb

 working pressure (oxygen filling) : 2.8 ~ 3.0MPa, the maximum 3.2MPa
Pressure test (water pressure) : 20.0MPa
Quality: 2.5 Kg
Volume: 300 ml
Overall dimension: Φ86mm ×181mm
Repeatability: ± 30J/K
Capacity of external water cylinder about 45L
Inner water cylinder capacity about 2100mL
Ignition mode Fused cotton thread ignition
Temperature resolution 0.0001℃
Measurement accuracy in line with the national standard GB/T 213-2008
Machine power < 300W in ignition state
Use environment

Temperature 0-40℃

Humidity ≤80%
Ignition voltage AC24V
Voltage AC220V ± 10% 50Hz
Overall size: 460 ×440× 580mm Weight: approximately 30 kg

Packing list

S/N Name Unit Quantity Remarks
1 Calorimeter host set 1
2 Oxygen bomb piece 1
3 Oxygenator piece 1
4 Oxygen bomb rack piece 1
5 Crucible piece 2 Vulnerable spare parts
6 10mL syringe piece 1

7

Rubber sealing ring

set

2

One set of oxygen filling instrument and one set of oxygen bomb

Vulnerable spare parts
8 Ignition wire piece 1 0.18mm Ni-Cr wire, consumables
9 Cotton thread piece 1 consumables
10 Benzoic acid piece 10 consumables
11 Printing paper piece 2 consumables
12 Power cord piece 1 250V 6A
13 Instructions copy 1
14 Certificate warranty card copy 1
